車輪で運ぶスーパーボウルLX:迅速に展開するスタジアムPAの計画

スーパーボウルLXでは台車式スピーカーを使用しました。開催事実と技術分析に基づき、迅速な展開、客席のカバー、会場設備との統合、リハーサル済みの運用を、未検証の性能主張と区別します。

ベッケテレコム

車輪で運ぶスーパーボウルLX:迅速に展開するスタジアムPAの計画

スタジアムのハーフタイムショーでは、イベントの時間枠内で実用的な上演空間を作り、その後アメリカンフットボールの試合に戻さなければなりません。スーパーボウルLXでは、仮設スピーカーシステムをフィールド用台車で所定の位置へ移動しました。実務上の課題はスピーカーの運搬だけではありません。配置、接続、撤去の順序を、ステージ、出演者、フィールドスタッフの作業と両立させる必要がありました。

開催情報を掲載したLevi's Stadiumのイベントページでは、スーパーボウルLXの開催日を2026年2月8日としています。David Barbourによる2026年3月の制作特集は、『Lighting & Sound America』47–50ページで18か所の音響台車配置を説明し、常設の試合用音響と可搬式のエンターテインメント用機材を区別しています。インタビューでは、芝生の保護とケーブルへのアクセス調整に伴う厳しい制約も述べられています。こうした報道上の展開事実は、独立して測定された音響結果を証明するものではありません。

以下の技術的考察は、この展開方式が他のイベントにとって何を意味するかを検討するものです。プロジェクト計画の分析であり、スーパーボウルの設計再現、試運転報告、Beckeの関与を示す証拠ではありません。

スピーカー配置より先に会場の形状を把握する

屋外スタジアム、屋根付きの観客席、全面屋根付きアリーナでは、仮設音響に使える条件が異なります。屋根が見えるからといって、適切な吊り点や耐荷重が確保されているとは限りません。吊り下げ、地上支持、移動式の機材を選ぶ前に、設計チームは支持構造、搬入経路、視線、競技面、イベント日程に関する承認済み情報を入手する必要があります。

フィールドへの展開が必要な場合、移動式台車によって事前組立済みシステムを実用的に運用できます。一方で、音源は一部の聴衆には比較的近く、他の聴衆には遠くなります。そのため、下段席、上層スタンド、エンドゾーン、屋根の下の席を個別に検討する必要があります。別のスタジアムの左右対称な台車配置を流用しても、実際の客席形状の検討には代えられません。

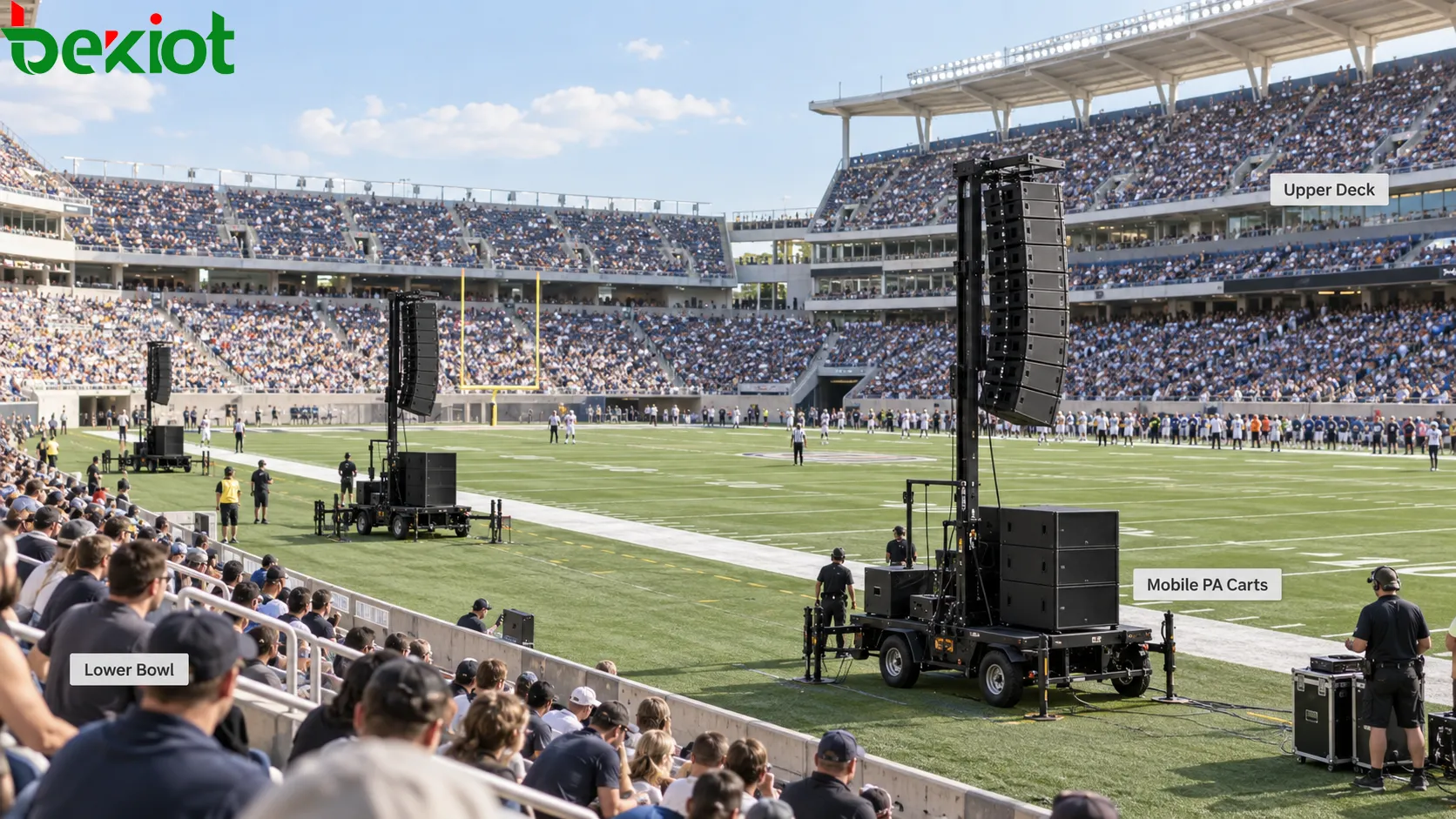

下層および上層客席の近くに車輪付きスピーカーアレイを置いたスタジアムの概念図
移動式PA配置の概念図であり、確認済みのスーパーボウルLX設置現場の写真ではありません。描かれた機材やBeckeの表示は、プロジェクトへの供給関係を証明しません。

機材選定前に、観客エリアと予定プログラムを定義します。音声案内と音楽公演では、必要なカバー範囲、音色バランス、運用レベルが異なる場合があります。仮設機材の設置、接続、撤去中に、会場の既存機能のうち何を継続するかをプロジェクトで明らかにする必要があります。

各台車の位置を再現可能にする

台車の利点は、機械的支持、スピーカーの配列、接続作業の一部を転換前に準備できることです。これによりフィールドに残る作業を減らせますが、各ユニットが予定の場所と向きに到達することが前提です。設計位置から数メートル離れて止まった台車は、もはや同じ音源配置ではありません。

各ユニットに、位置、構成、電源接続、音声の送信先と結び付いた識別番号を付けます。展開図には待機場所、移動方向、ケーブル作業の担当、準備完了を確認する人も示す必要があります。客席ゾーンによって異なる構成が必要な場合があり、台車群がすべて同一の音響機材である必要はありません。

機械的な適合性は、引き続き別の技術課題です。有資格者は実際の機材と会場要件を基に、台車、支持システム、安定性、荷重、移動面、天候上の制限を評価する必要があります。概念図も公表されたイベント紹介も、承認済みの施工設計にはなりません。

アレイの出力だけでなく聴取エリアを評価する

カバー範囲の計画では、最も近い聴衆と最も遠い聴衆を併せて検討します。遠方のスタンドに届くよう出力を上げると、フィールド高さのアレイ付近では過大な音圧となる場合があります。照射方向、音源位置、利用できる高さ、音源間のカバー分担が、このトレードオフに影響します。音楽には低域とダイナミクスの要件もあり、音声が聞こえるかどうかだけでは評価できません。

音響モデリングは、機材到着前に候補配置を比較するのに役立ちます。入力データと仮定は、会場、スピーカーデータ、予定の配置に合致させる必要があります。その後、予測を現地測定と照合します。色付きのカバーマップとして表示されているだけで、受入試験の結果になるわけではありません。

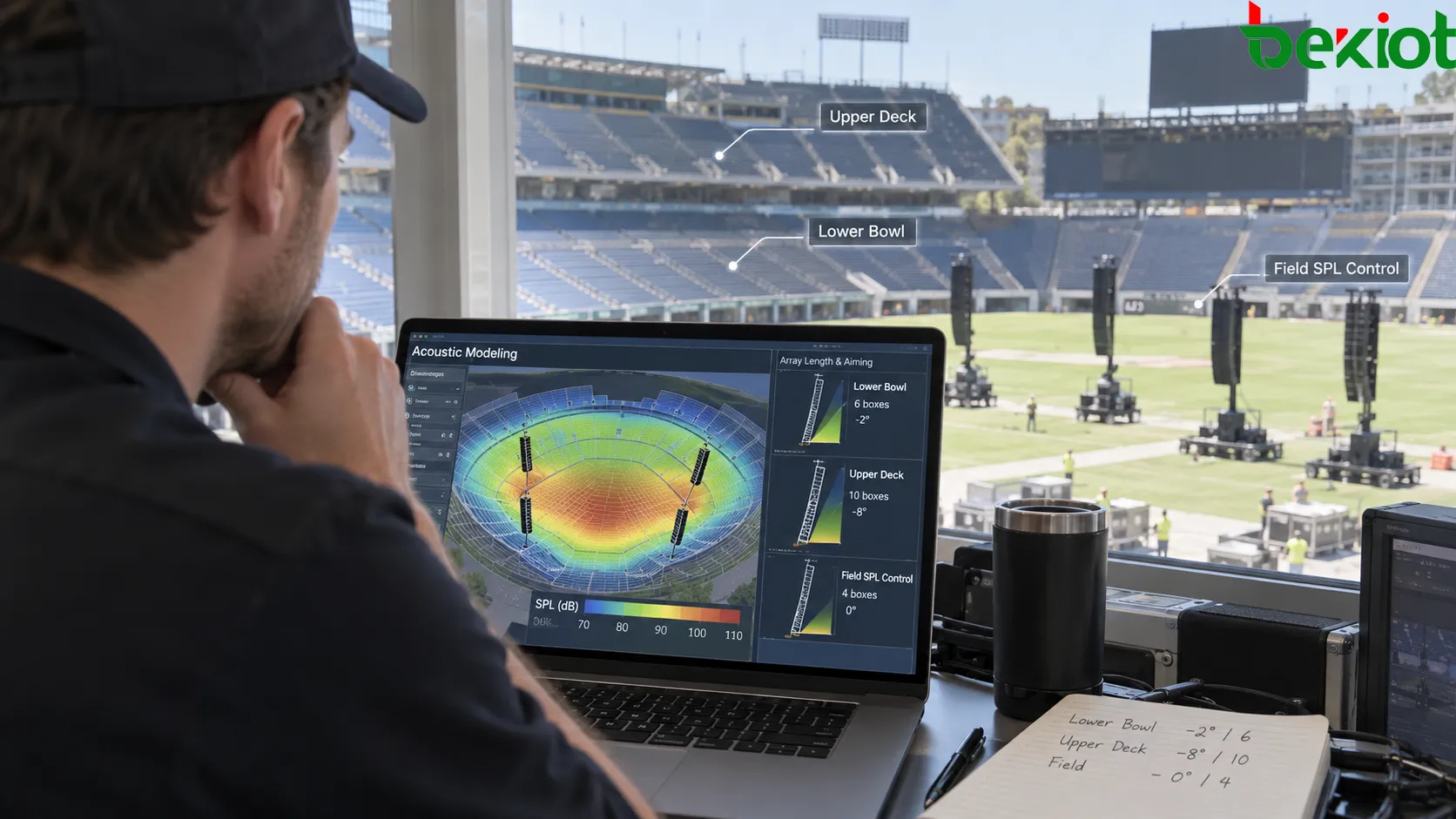

スタジアム客席のカバー範囲とアレイ照射方向の例を示す音響モデリング画面の概念図
モデリングの説明図です。表示されたレベル、角度、スピーカー数は、スーパーボウルの実測結果でも、他の会場に推奨する設定でもありません。

試運転前に、評価位置と性能基準を合意します。近距離、遠距離、高所、遮蔽された席の代表例と、2つのシステムが重なるエリアを含めます。結果を解釈できるよう、運用レベル、使用信号、天候、客席の入場状況を記録します。許容限度は、無関係なイベントから流用した一律の数値ではなく、プロジェクト仕様と適用される会場要件に基づくべきです。

常設音響とのインターフェースを定義する

仮設機材がエンターテインメントを担当する間、会場の常設音響は試合案内を継続できます。会場スピーカーによる補完的なカバーを提案する場合、チームには、信号の管理責任、処理、遅延、レベル、ミュート、通常運用への復帰を含む接続計画が必要です。適切な統合は設計上の判断であり、両システムが音声を受信できるだけで自動的に成立するものではありません。

安全案内には別途合意した運用体制が必要です。コンサート用システムを追加しても、非常放送設備として認証されたり、人命安全に関わる機能の引き継ぎが許可されたりするわけではありません。設営、公演、撤去の全期間を通じて必要な案内を利用可能にする方法を、会場責任者が承認すべきです。

ネットワーク音声では、互換インターフェース、クロックドメイン、機器の参加・離脱による影響を明らかにします。ネットワークポートが2つ、またはケーブルが2本あるだけでは、独立したバックアップの証明にはなりません。主系と代替経路で共用する構成要素を記録し、管理された条件下で予定の復旧動作を検証します。

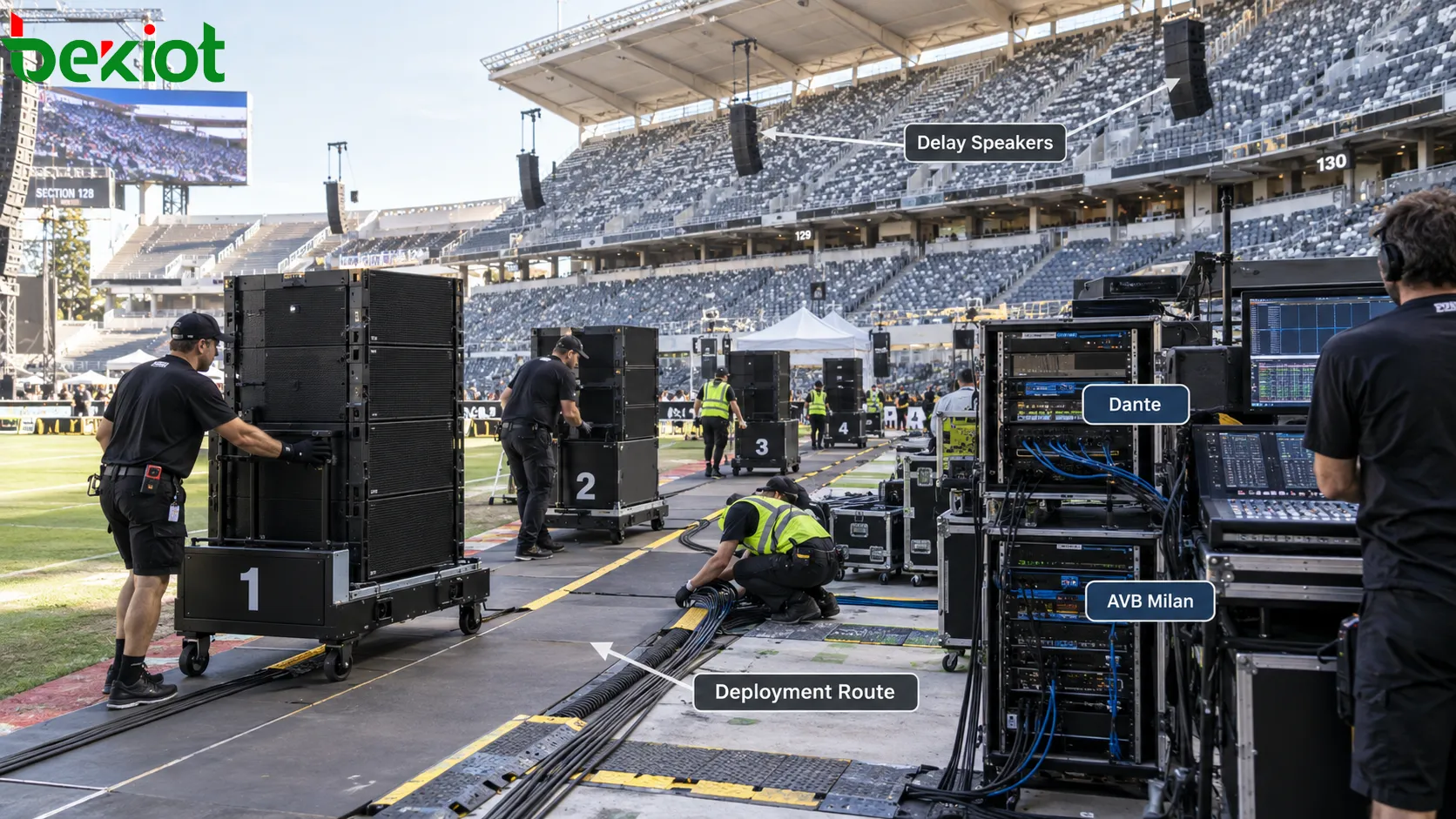

番号付きPA台車、ケーブル経路、音響ラック、スタジアムのディレイスピーカーの概念図
展開状況の概念図です。伝送プロトコルの表示と見かけ上の接続は説明用であり、相互運用性、冗長経路、スーパーボウルの実際のネットワーク構成を検証するものではありません。

移動と接続を一緒にリハーサルする

成立する音響設計であっても、機材が経路を塞いだり、コネクターに手が届かなかったりすれば、イベントの時間枠に間に合いません。ケーブルを扱う人と機材状態を確認する人を含め、展開と撤去を一連の完全な手順として計画します。故障したユニットには、大型台車が他の作業班や緊急アクセス経路を塞ぐことのない対応手順を定めるべきです。

英国のHealth and Safety Executiveが公表したイベントの電気安全ガイダンスは、現場配置、電力需要、環境からの保護、安全な設置と撤去を可能にするケーブル経路を重視しています。英国の状況において有用な計画指針ですが、米国の制作が英国規則に適合していた証拠ではありません。イベントに適用される現地要件と、適格な専門家による電気設計が引き続き決定的です。

リハーサル・確認項目確認する内容
移動と位置決め他の作業を妨げず、表面を傷めず、安定性を損なわずに各ユニットが表示位置に到達する
接続と準備完了電源と音声の割り当てが図面に一致し、担当オペレーターが準備完了を確認できる
観客エリアのカバー合意した聴取エリアを、条件を記録したうえで評価する
システム間インターフェースタイミング、レベル、制御の引き継ぎ、必要な会場案内が計画どおりに機能する
故障対応音源、リンク、給電の故障による影響と承認済みの対応を作業班が把握している
撤去合意した転換時間内に、機材を安全に切り離し、移動し、数量を確認する

スーパーボウルLXは、報道で確認できる移動式音響展開の例であり、スタジアム共通の仕様ではありません。応用できる教訓は、音響、支持構造、電源、信号分配、スタッフの移動を1つの連携したプロジェクトとして扱うことです。恒久的な設備更新という別の課題については、Portman RoadスタジアムのPAに関する記事で、常設システムの再構築を取り上げています。
