The Becke BK-PA240AF is built for projects that need stronger output, broader coverage, and more flexible control in demanding outdoor environments. Designed for modern IP broadcasting systems, it combines high-power amplification, network audio transmission, SIP compatibility, web-based management, and intelligent protection in a compact weatherproof platform.

For industrial users, transport operators, utility sites, and large outdoor facilities, the BK-PA240AF offers more than just higher wattage. It gives system integrators a network-ready amplifier that can support everyday announcements, scheduled playback, emergency paging, alarm broadcasting, and centralized management without adding unnecessary complexity to the deployment.

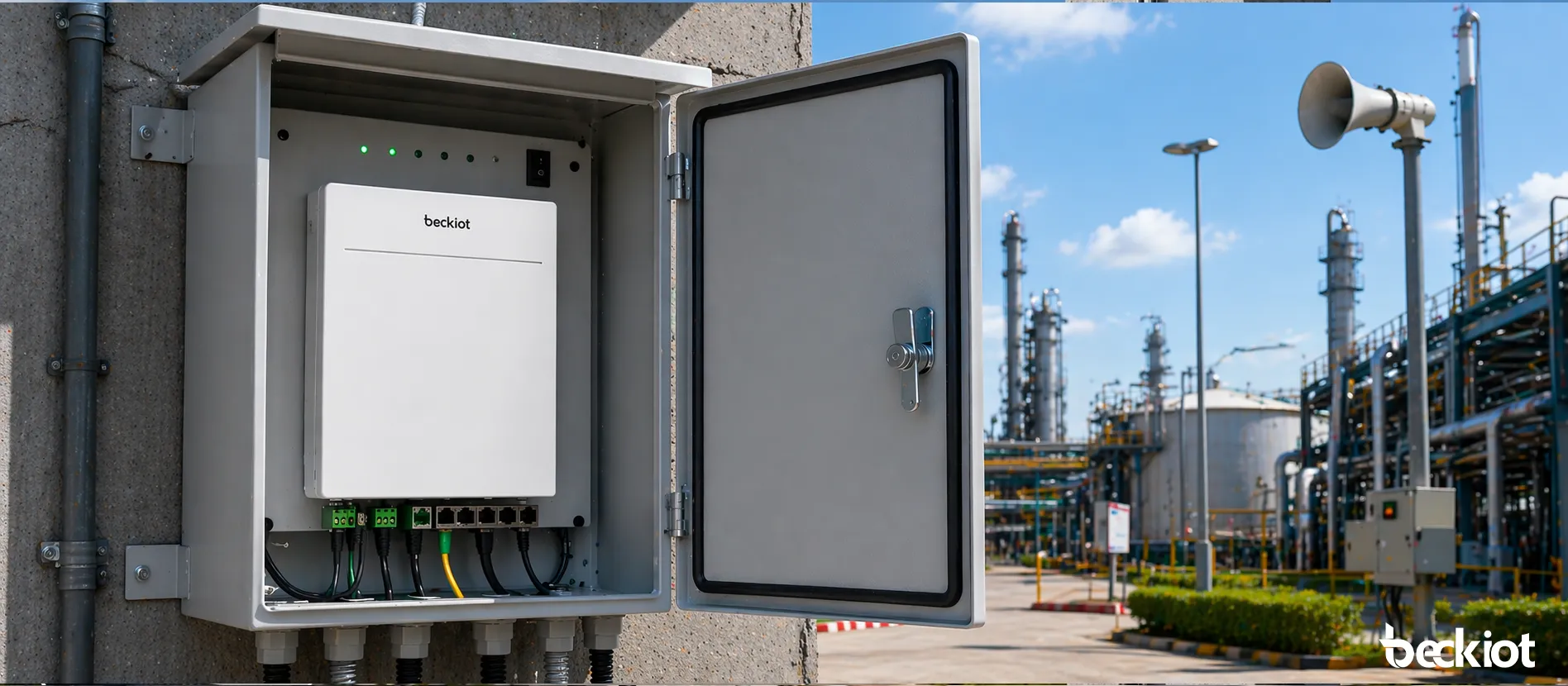

Designed for Higher-Power Outdoor Deployment

The BK-PA240AF is positioned for sites where audio coverage must remain stable across wider areas and more demanding field conditions. With 240W rated output, it is well suited to larger outdoor broadcasting tasks where smaller amplifiers may not provide enough headroom for reliable voice delivery. This makes it especially valuable in plants, yards, utility areas, perimeter zones, loading areas, and other open-site applications where speech clarity and broadcast reach matter.

Its hardware platform is based on a domestic dual-core ARM Cortex-A7 processor running at up to 1.2GHz, paired with a deeply customized Linux operating system. This foundation supports long-term operational stability, strong system control, and dependable integration into larger IP communication architectures. For projects that prioritize system autonomy, operational continuity, and controllable maintenance, this architecture adds practical value beyond basic audio output.

The built-in watchdog mechanism further improves stability by monitoring system status and helping maintain reliable operation over long service cycles. Combined with a mean trouble-free running time of more than 10,000 hours, the BK-PA240AF is clearly aimed at real engineering deployments rather than light-duty consumer-style usage.

Product Strengths That Matter in Real Installations

High-Power Output for Wider Coverage

The most obvious advantage of the BK-PA240AF is its stronger 240W amplification capability. This gives project designers more flexibility when planning wider outdoor voice coverage, linking more external speakers, or building systems that must maintain stronger output in noisy and open environments. In industrial sites, transport facilities, and municipal communication networks, this higher output can make a noticeable difference in audibility and operating confidence.

Because the amplifier is intended for outdoor weatherproof deployment, it is not just about pushing more volume. It is about delivering more stable and more usable broadcast performance in conditions where ambient noise, long-distance transmission, and emergency intelligibility all place greater pressure on the system.

Multiple Ways to Launch Broadcast Tasks

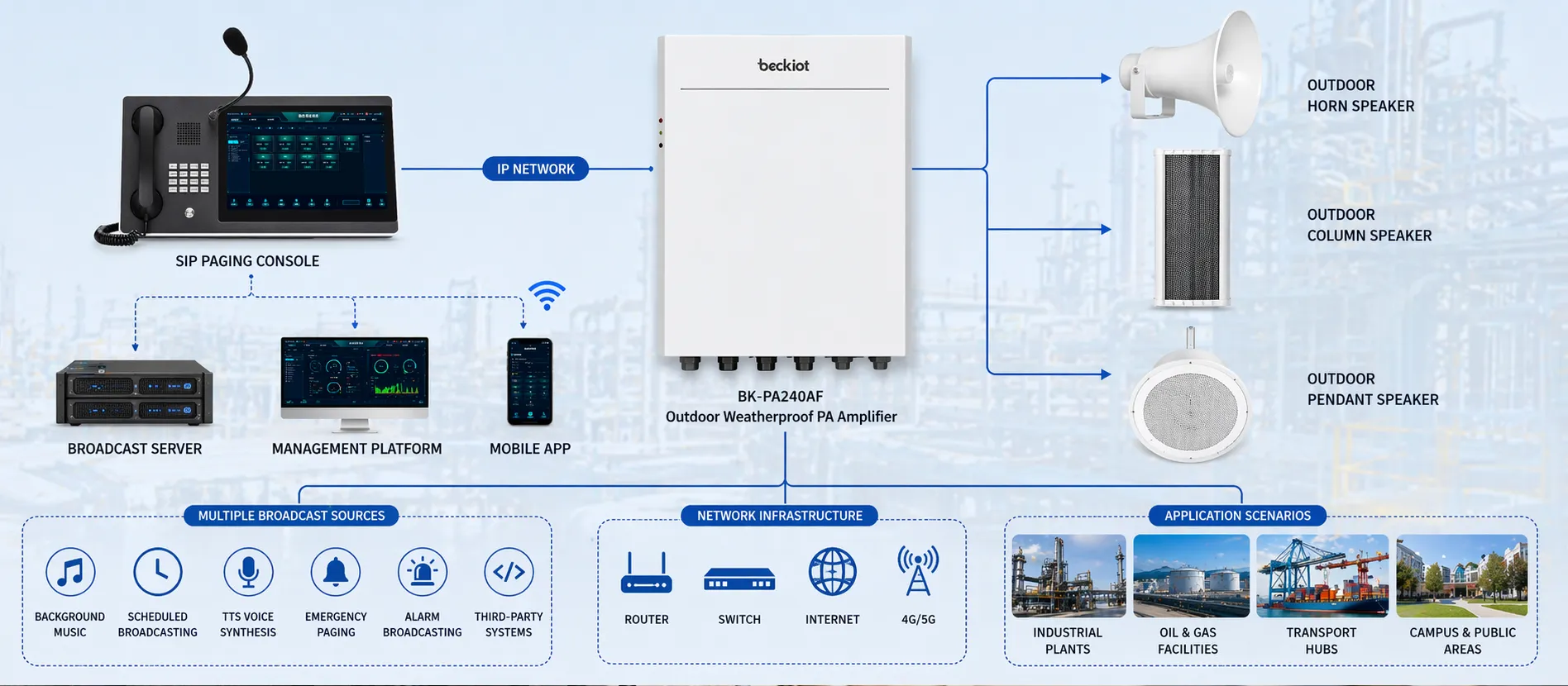

The BK-PA240AF supports diversified broadcast task delivery methods. Users can issue tasks from a broadcast server, sub-control client, mobile app, or third-party application. This allows the amplifier to support background music, scheduled broadcasting, TTS voice synthesis, emergency paging, and alarm broadcasting within one unified operating framework.

That flexibility is particularly useful in projects where normal routine communication and urgent emergency messaging need to share the same infrastructure. Operators can manage daily audio tasks efficiently while keeping the system ready for fast alarm response when site conditions change.

Remote Web Management That Simplifies Ongoing Maintenance

The amplifier provides a complete web-based remote management interface. By entering the device IP address in a browser, users can perform real-time program control, adjust volume, and reboot the equipment remotely. For widely distributed outdoor systems, this reduces the need for on-site visits and makes it easier for maintenance teams to respond quickly to operational needs.

Web-based configuration also supports flexible adjustment of system parameters, including audio settings, permission hierarchy management, system configuration changes, and online firmware upgrades. This improves maintenance efficiency and helps project teams keep the device updated without disrupting the overall architecture.

Network Capability That Supports Modern Broadcast Systems

Strong Protocol Compatibility for Integration

The BK-PA240AF integrates a network audio codec module and supports TCP/IP, UDP, SIP, and HTTP protocols. This gives it strong compatibility with modern IP broadcasting and paging systems, while making it easier to integrate into different network environments and control structures. Whether the project is centered on SIP paging, server-based broadcasting, or distributed audio control, the amplifier can fit into the design without forcing a narrow deployment model.

It also supports DHCP and works across a broad range of network structures, including routers, switches, bridge gateways, Modem connections, Internet-based links, 2G, 3G, 4G, 5G, multicast, and unicast environments. That makes the product particularly useful for multi-site deployments where infrastructure may vary from location to location.

CD-Quality Audio Transmission for Clear Voice Delivery

The amplifier supports 16-bit stereo audio with CD-level sound quality and is compatible with MP3 and WAV formats. For paging and public address projects, this means more than music playback quality. It supports clearer spoken announcements, better intelligibility for scheduled notices, and more professional delivery of emergency voice messages.

Sampling support from 8K to 48K also gives the system flexibility for different audio requirements, whether the priority is narrowband voice transmission or higher-quality broadcast playback.

Performance-Oriented Design for Stability and Efficiency

Class-D Amplifier Technology with Better Control

The BK-PA240AF uses Class-D power amplifier circuit technology with a full-loop feedback network to further reduce distortion. In practical use, this helps the amplifier deliver smoother high-power output while preserving strong audio integrity. For users operating in noisy outdoor conditions, the benefit is not just electrical efficiency but more consistent and more controlled sound performance.

This design also supports more stable behavior under heavier load conditions, which is important in larger systems where the amplifier may be expected to handle demanding voice distribution tasks over long periods.

Dual PFC Power Design for Wider Electrical Adaptability

The dual PFC switch-mode power supply design improves amplifier performance while reducing power current consumption. With wide voltage support from AC90V to AC265V, the BK-PA240AF is adaptable to different regional power environments and helps reduce deployment restrictions for international or mixed-infrastructure projects.

That wide voltage range is especially practical for outdoor or semi-remote deployments where power quality may be less predictable. It improves operating resilience and supports a more energy-conscious system design.

Soft Start, Smart Cooling, and Energy Saving

The amplifier supports a soft-start function to prevent large inrush current when powering on, reducing interference to other connected equipment on the same electrical system. This is a small detail technically, but a very useful one operationally, especially in larger multi-device installations.

The cooling system is intelligently managed according to temperature variation, with efficient heat dissipation and relatively low fan noise. The internal fan starts when the heatsink reaches the required temperature, which helps balance thermal protection with equipment longevity.

It also includes an intelligent power-saving mode. When no signal is present, the amplifier can automatically enter standby, keeping standby power consumption at 10W or below. This helps reduce energy waste across large distributed networks with many devices installed in parallel.

Protection and Expandability for Serious Field Use

Protection Designed for Outdoor Reliability

The BK-PA240AF includes a multi-layer intelligent protection system covering soft start, DC protection, short circuit, overheat, overload, and limiter protection. These functions improve user confidence in daily operation and help reduce the risk of equipment damage during abnormal conditions.

It also supports lightning protection capable of resisting 4KV surge impact, which is an important advantage for outdoor applications. In real deployments, this adds another level of field readiness and helps protect against environmental electrical disturbance.

Status indicators for level, protection, and standby conditions also make the amplifier easier to inspect and maintain, giving technicians a clearer view of equipment status without unnecessary troubleshooting delay.

Flexible I/O and Monitoring Expansion

The BK-PA240AF includes an AUX line input with independent volume control, making it easier to handle local audio sources when needed. It also provides an auxiliary audio output interface for expanding with an external power amplifier through a standard RCA connector, which simplifies field wiring and system growth.

For projects requiring deeper supervision, an optional RS485 monitoring module can be added for real-time amplifier status monitoring and centralized device management. This is especially useful in larger outdoor systems where equipment health and operating visibility are important to long-term maintenance efficiency.

Recommended Application Scenarios

Industrial Plants and Process Facilities

The BK-PA240AF is a strong match for petrochemical plants, manufacturing sites, utility stations, and processing facilities where high-power outdoor broadcasting is needed. It can support emergency paging, routine announcements, shift notifications, and coordinated voice messaging across large operational areas.

Ports, Logistics Yards, and Transport Sites

With its stronger output and flexible network integration, the amplifier is well suited to ports, cargo yards, railway support zones, bus depots, and transport hubs. These environments often require wider sound coverage, centralized control, and the ability to distribute urgent messages quickly over large open areas.

Campus, Perimeter, and Municipal Broadcast Networks

The BK-PA240AF also fits outdoor campus communication, industrial parks, public safety installations, municipal broadcast points, and perimeter alert systems. Because it can work with servers, apps, and third-party platforms, it supports both centralized control and scalable expansion across geographically distributed sites.

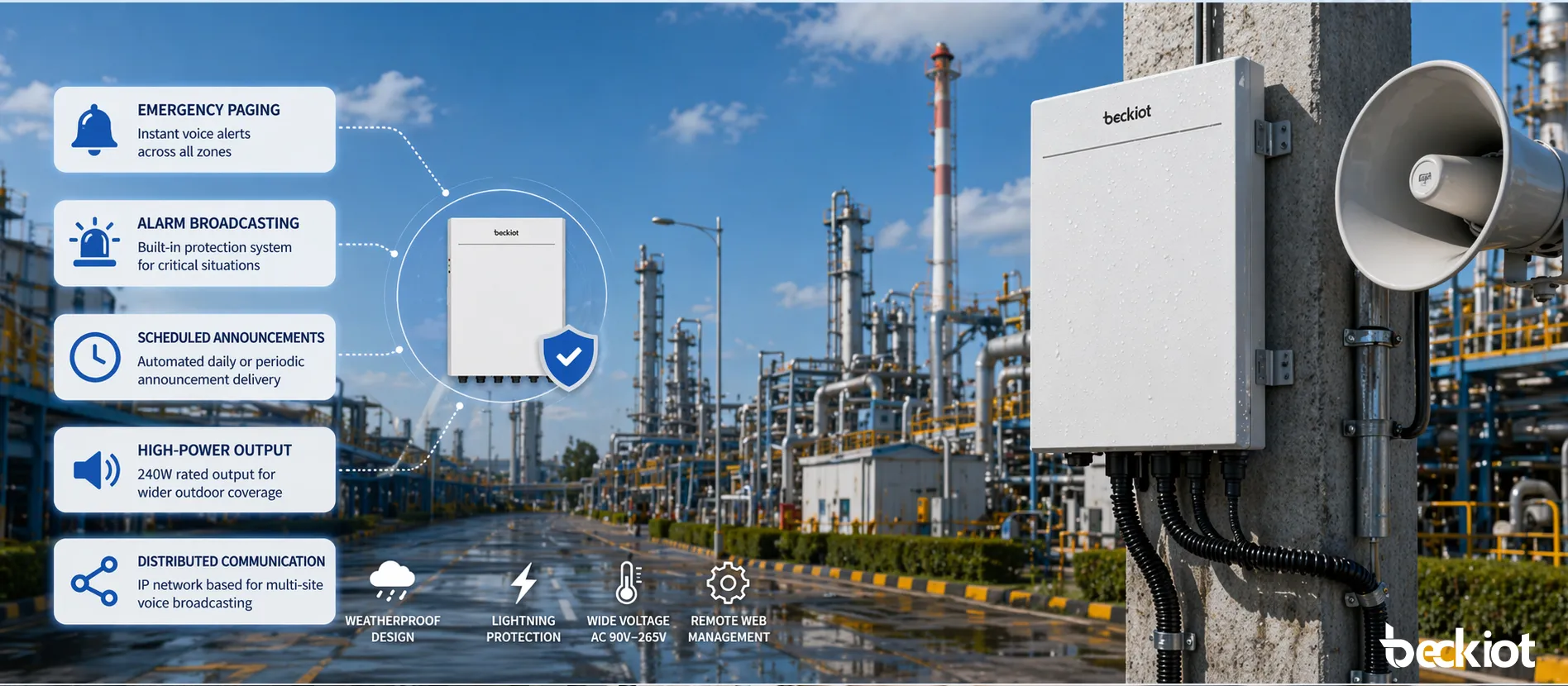

Alarm and Emergency Communication Systems

For projects that need fast response, the amplifier is well suited to alarm broadcasting and emergency paging networks. Its combination of SIP support, remote control, scheduled tasks, and high-power output makes it a practical audio endpoint for systems where speed, audibility, and reliability are critical.

Why the BK-PA240AF Is a Practical Choice

The BK-PA240AF stands out because it combines higher power with network intelligence. It is not just an outdoor amplifier with a weatherproof form factor. It is a purpose-built IP audio device for larger sites that need stronger output, flexible broadcast task control, remote web management, energy-efficient operation, and reliable field protection.

For integrators building outdoor SIP paging systems or distributed IP public address networks, it offers a more capable option when 60W-class devices are no longer enough. It supports broader coverage, more confident deployment, and better long-term maintainability in serious outdoor communication projects.

FAQ

1. What is the main advantage of the BK-PA240AF compared with a lower-power outdoor PA amplifier?

The key advantage is its 240W rated output, which gives it stronger coverage capability for larger outdoor spaces and more demanding voice broadcasting tasks. It is a better fit for projects that need more output headroom and wider audio reach.

2. Can the BK-PA240AF work in SIP-based paging systems?

Yes. It supports SIP along with TCP/IP, UDP, and HTTP, allowing it to integrate into SIP paging, IP broadcasting, and other network-based communication architectures.

3. How can users manage the amplifier remotely?

Users can access the device through a web browser using its IP address. The web interface supports real-time control, volume adjustment, system configuration, permission management, reboot functions, and online firmware upgrades.

4. Is the BK-PA240AF suitable for long-term outdoor operation?

Yes. It is designed for outdoor deployment with features such as intelligent protection, smart cooling, lightning surge protection, wide voltage support, watchdog monitoring, and optional RS485-based centralized monitoring.
