SIPアクセスコントロールまたはSIPインターコムをNVRに接続する方法は?

はじめに

概要

このドキュメントでは、SIPアクセス制御デバイスとSIPインターホンデバイスをNVRに接続する方法について説明します。主に産業用端末製品のビデオ録画を実現するためです。NVRクライアントは産業用ビデオ端末にRTSPコマンドを送信し、端末は内蔵カメラのビデオストリームをクライアントに返して、リアルタイムのビデオ視聴と録画を行います。
NVRはネットワークビデオレコーダーの略で、ネットワークビデオ監視システムのストレージおよび転送コンポーネントです。NVRはビデオエンコーダーまたはIPカメラと連携して、ビデオの録画、ストレージ、転送機能を完了します。

対応モデル

BHP-SOS16, BHP-SOS18, BHP-SOS30, BHP-SOS30V, BHP-SOS33V, BK-DAB-PA2, BHP-SOS10, BHP-SOS10V, BHP-SOS11, BHP-SOS11V, BHP-SOS16V.

NVR録画環境の準備

1.3.1 デバイスの準備

内蔵カメラを搭載した産業用ビデオ端末と、HikvisionまたはDahuaのNVRを1台準備します。

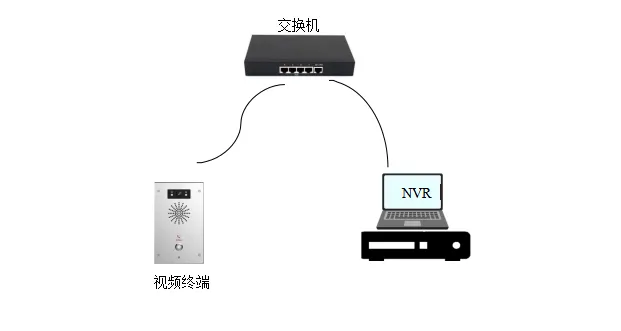

1.3.2 ネットワーク接続図

注: 上記のネットワーク図はLAN内での使用のみを目的としています。パブリックネットワークでの展開については、テクニカルサポートチームにお問い合わせください。

NVRへの端末追加手順

Hikvision NVRを例に

① ブラウザからNVRのWebインターフェースにログインします。
NVR Webインターフェースにログイン
② 設定 - チャンネル管理に移動します。
設定チャンネル管理モジュール
③ カスタムプロトコルを設定します:

  • プロトコルタイプ:RTSP

  • 転送プロトコル:自動

  • ポート:554

  • リソースパス:アクセス制御設定 - ビデオ設定 - RTSP情報からメインストリームのURLをコピーします

注:メニューパスはデバイスモデルによって異なります。インターホンデバイスの場合、RTSP URLはインターホン設定 - ビデオ設定(カメラ設定)にあります。

インターホンビデオ設定

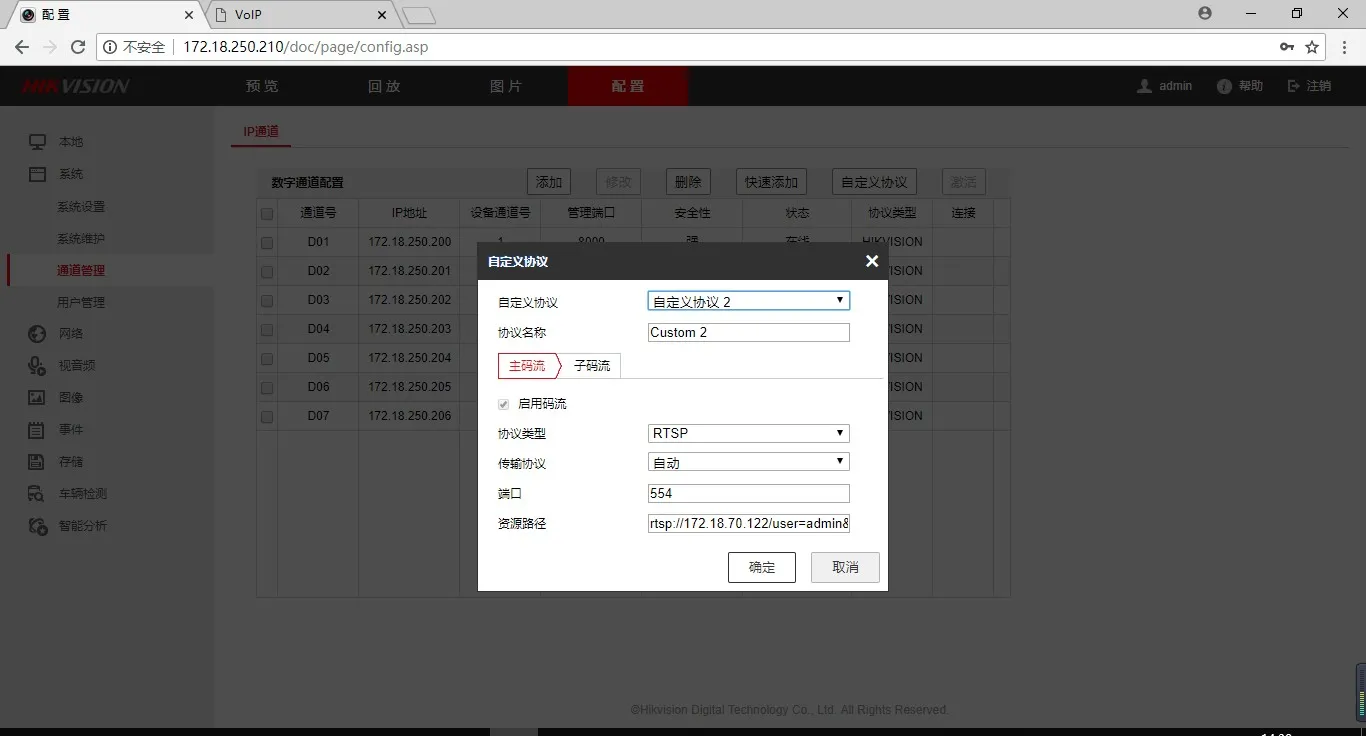

カスタムチャンネル設定
④ IPチャンネル設定 - 追加:

  • IPチャンネルアドレス:SIPアクセス制御デバイス / SIPインターホンデバイスのIPアドレス

  • プロトコルタイプ:作成したカスタムプロトコルの名前

  • 管理ポート:カスタムプロトコルのデフォルト値を使用

  • ユーザー名:カスタムユーザー名

  • パスワード:カスタムパスワード

  • パスワード確認:上記のパスワードと同じ

  • 転送プロトコル:デフォルト

⑤ 追加成功、ステータスはオンラインと表示されます。

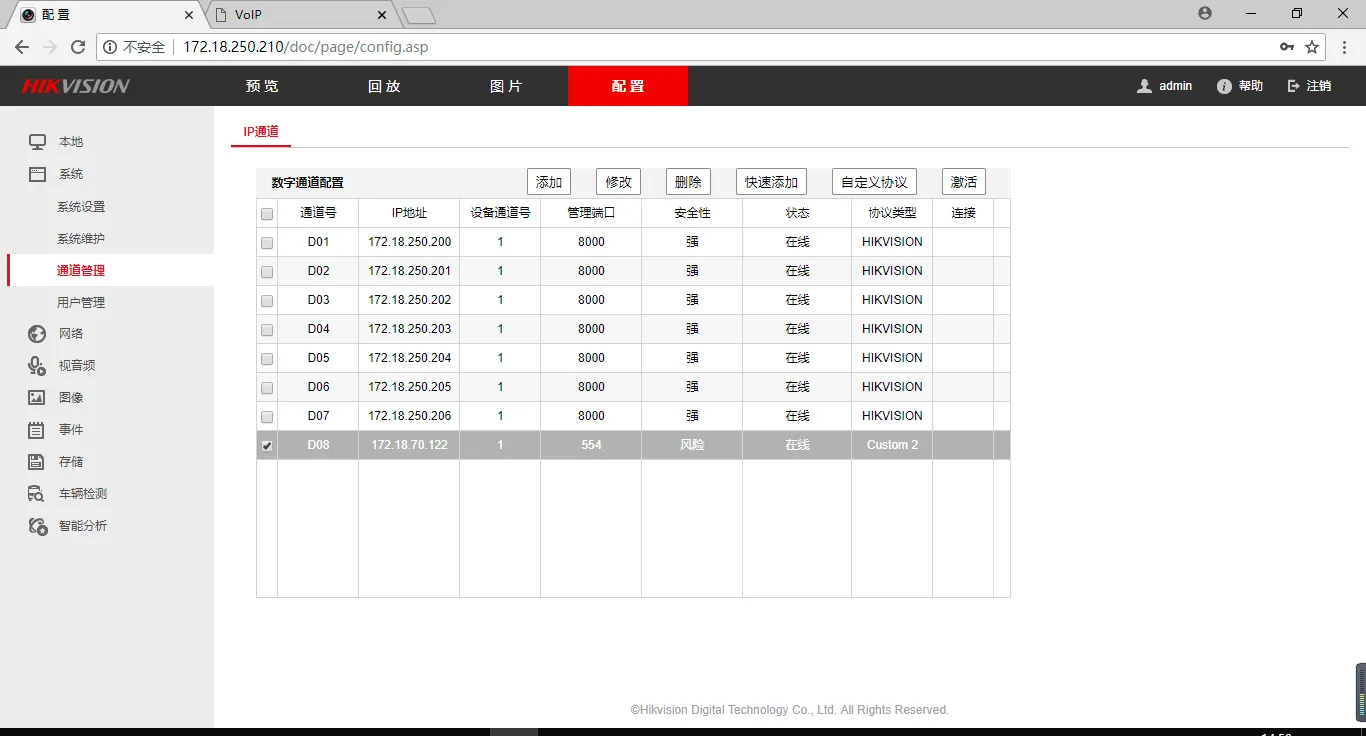

NVR追加成功インターフェース
⑥ プレビューページで対応するチャンネルのビデオを表示できます。
