防爆電話の銘板の読み方

防爆電話の銘板は保護方式、ガス・粉じんグループ、T1–T6、EPL、IP 等級、周囲温度限界を示します。完全な型式認証書と条件が、分類された設置場所に適合する必要があります。

ベッケテレコム

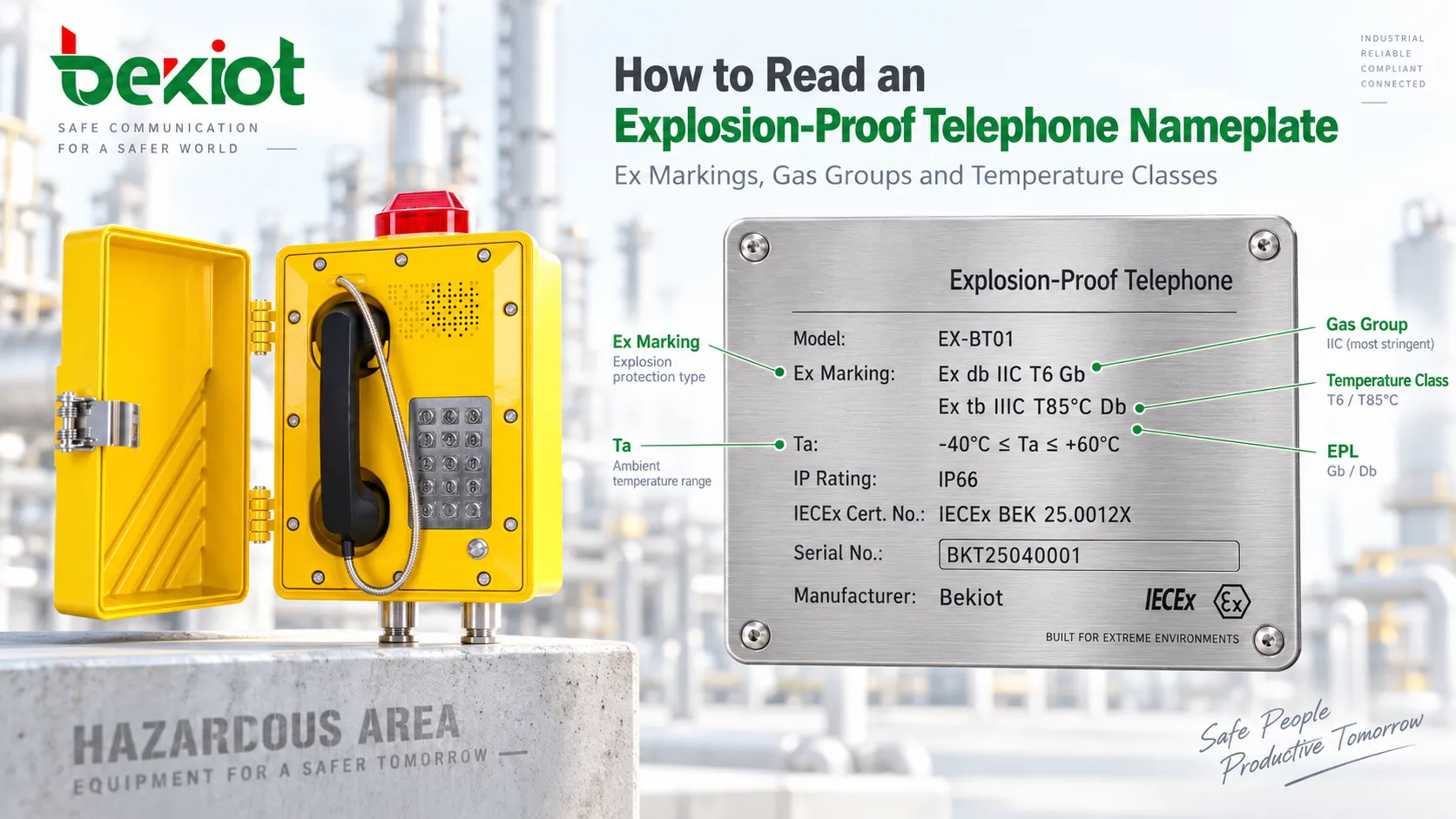

防爆電話の銘板の読み方

防爆電話の銘板は、機器と、爆発性雰囲気に対して表示された保護を識別します。現場の危険場所分類と照合したうえで、完全な型式、認証書、設置説明書を確認してください。黄色い外箱、IP 等級、または「IIC T6」という表示だけでは適合性を判断できません。

Ex 表示の各要素を分ける

次のガス用表示は例であり、特定の電話についての認証主張ではありません。

Ex db IIC T6 Gb
要素意味
Ex適用規格に基づく防爆保護の表示。
db保護レベル b の耐圧防爆構造。
IICガス用機器のサブグループ。
T6規定条件で最高表面温度を 85°C に制限するガス温度等級。
Gbガス雰囲気に対する機器保護レベル(EPL)。

別途認証された粉じん用表示には Ex tb IIIC T85°C Db などがあります。tb は外箱による粉じん防爆、IIIC は導電性粉じんを含むグループ、T85°C は最高表面温度、Db は粉じん用 EPL です。ガスと粉じんの表示は個別の評価です。ガス用の承認は粉じんへの適合を示さず、粉じん機器の選定では浮遊状態と堆積層の発火条件を考慮する必要があります。

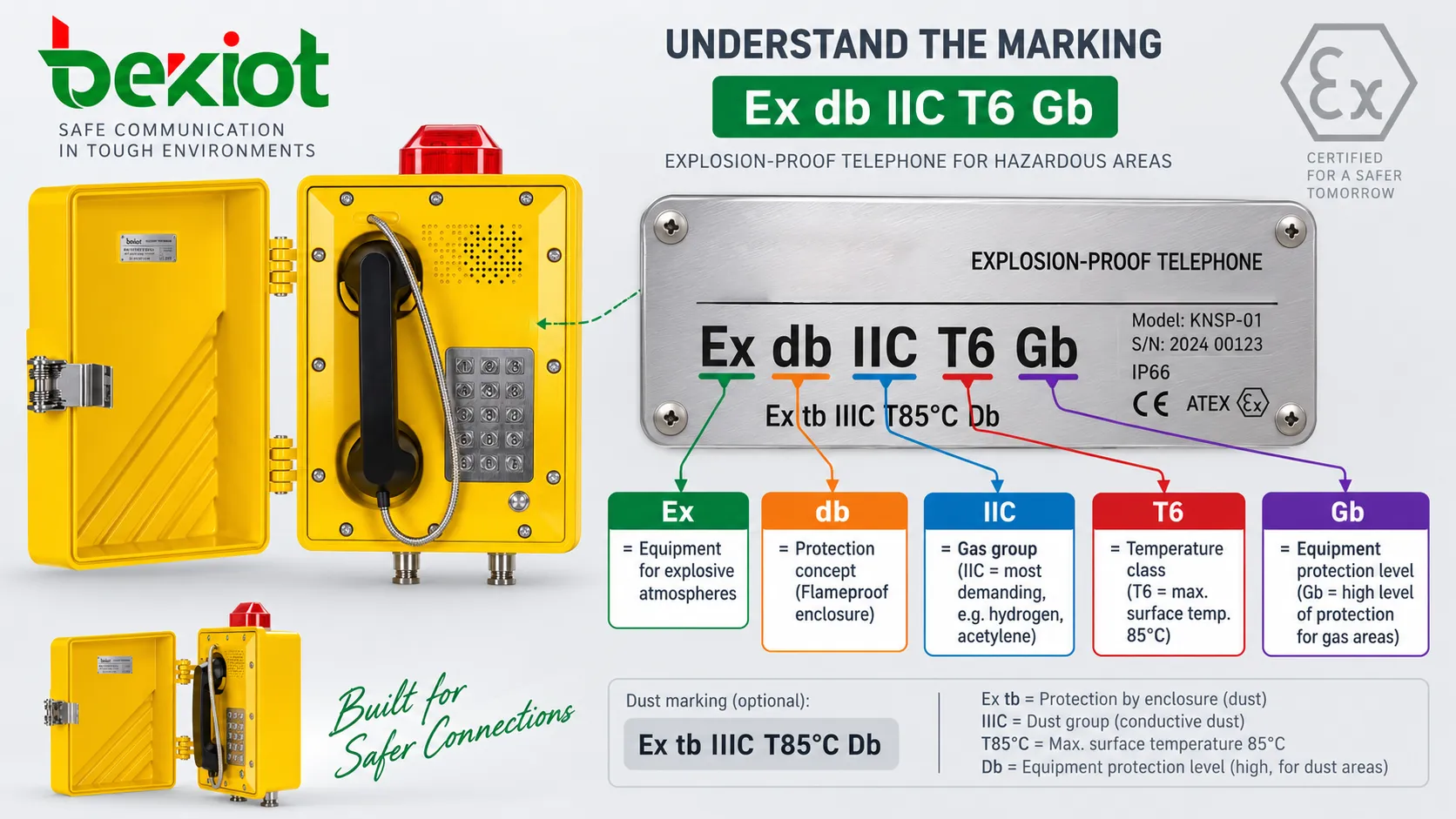

Ex db IIC T6 Gb の各要素と別の粉じん表示を示す電話銘板のイラスト
表示の内訳を示すイメージ図

保護方式と組立品の範囲を理解する

耐圧防爆 d または db は、内部爆発に耐え、周囲の指定雰囲気への着火を防ぐよう設計された外箱と火炎逸走防止接合部を使用します。安全増防爆 e または eb は、定義された条件で火花や過度の温度による着火を防ぐ構造上の対策を採用します。本質安全防爆 i は ia や ib などのレベルを持ち、指定された通常・故障条件で電気および熱エネルギーを制限しますが、火花が物理的に発生し得ないという意味ではありません。

Ex db eb IIC T6 Gb のような複合表示は、複数の保護方式を示します。文字数が多いほど優れた電話という順位ではありません。各方式が認証組立品、端子、外部回路にどのように適用されるかを確認してください。

許可された手順なしに、外箱への穴あけ、締結部品の交換、火炎逸走防止接合部の変更、ケーブル引込部の変更を行わないでください。部品や空の外箱の認証書だけで、組み立てた電話が認証されるわけではありません。外箱、内部機器、アクセサリー、設置が承認範囲に一致する必要があります。

ガスグループを温度と独立して照合する

地上産業のガス雰囲気に対するグループ II は、IIA、IIB、IIC に区分されます。代表例として、それぞれプロパン、エチレン、水素またはアセチレンが知られています。これらはグループの例であり、物質ごとの完全な選定指示ではありません。鉱山用グループ I と粉じん用グループ III には個別の確認が必要です。

現場のガスサブグループこの要件を満たし得る機器サブグループ
IIAIIA、IIB または IIC
IIBIIB または IIC
IICIIC

この表は、個別の制限を前提に、ガスグループ要件だけを扱います。一般に IIC 機器は IIB と IIA のグループ要件を満たせますが、IIB 表示だけでは IIC 要件を満たしません。引き続き温度、EPL、周囲条件の限界、認証書全体を確認してください。

T1–T6 と周囲温度を区別する

ガス温度等級は、認証条件下における機器の最高表面温度を規定します。許容周囲温度ではありません。

温度等級最高表面温度
T1450°C
T2300°C
T3200°C
T4135°C
T5100°C
T685°C

T6 は T4 より許容表面温度が低く、すべての適用条件を満たせば T4 の温度等級要件に適合できます。しかし、電話を周囲温度 85°C で運用できるという意味ではありません。認証された Ta 範囲を別途確認してください。

例えば、-40°C ≤ Ta ≤ +60°C は 65°C に達する現場をカバーしません。複数の温度定格は周囲温度、電気負荷、構成に依存する場合があります。各行から都合のよい値を選ばず、認証書に記載された該当する組合せを使用してください。

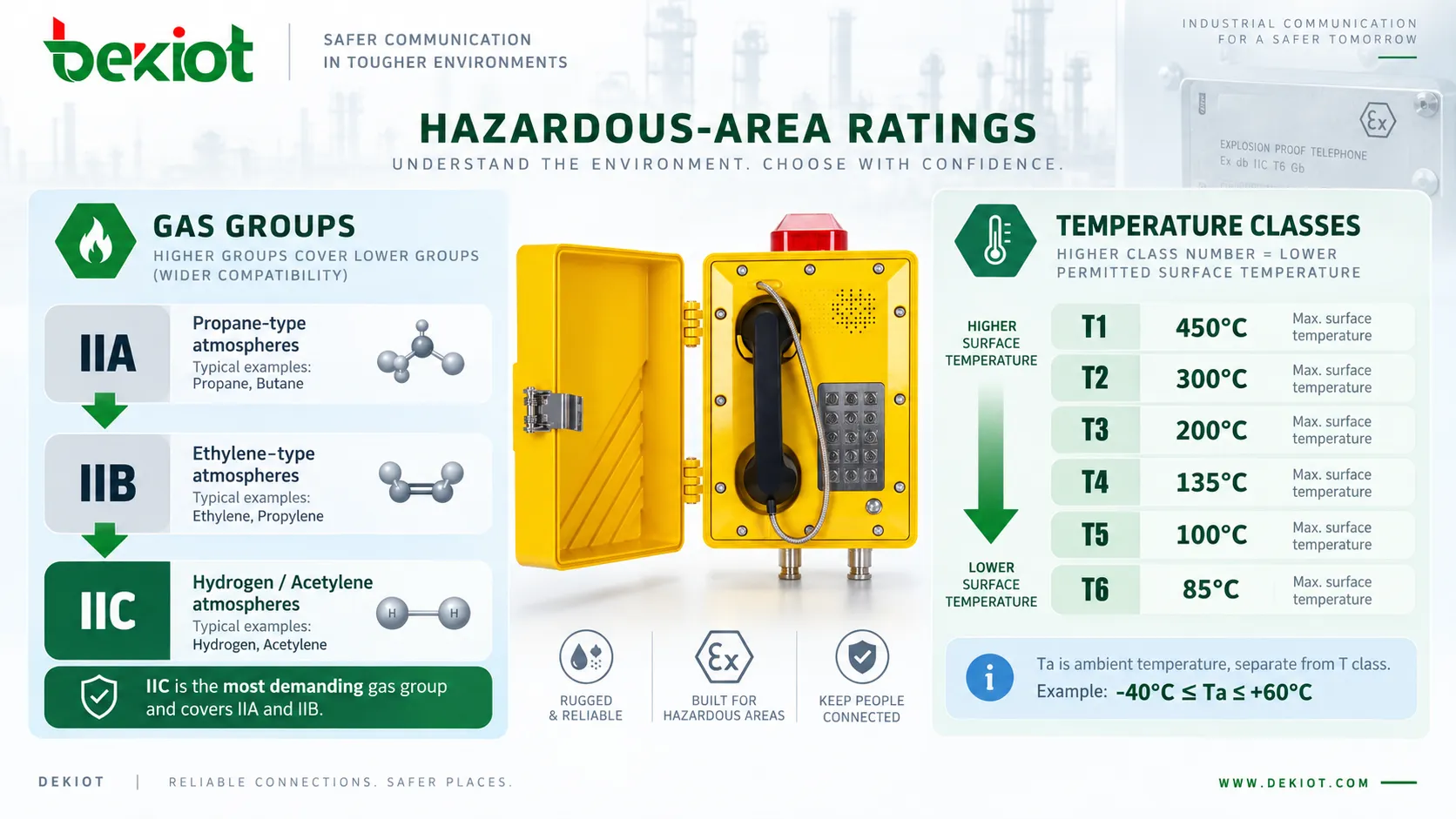

ガスグループ IIA から IIC と温度等級 T1 から T6 を比較し、周囲温度範囲の例を示すイラスト
ガスグループと温度等級の説明図

EPL、侵入保護、認証条件を確認する

一般的な IEC の選定関係では、ゾーン 0 は Ga、ゾーン 1 は Gb または Ga、ゾーン 2 は Gc、Gb または Ga です。粉じんでは、ゾーン 20 は Da、ゾーン 21 は Db または Da、ゾーン 22 は Dc、Db または Da です。現場で指定された EPL と適用される現地規則を、完全な保護方式および認証書と併せて適用してください。

IP66 は粉じんと水の侵入に対する保護を示します。Ex 承認ではなく、無制限の洗浄耐性を意味せず、腐食評価の代わりにもなりません。Ex 設計を損なわずに、必要な環境保護を確認してください。

実物の型式と仕様違い、製造者、電気定格、周囲温度範囲、認証番号を、実際の認証書とその現在の状態に照合します。接尾辞 X は遵守すべき特別使用条件を示します。接尾辞 U は組込みに追加評価が必要な Ex コンポーネントを示し、完成した電話の単独使用承認ではありません。

IECEx と ATEX は異なる適合性の枠組みです。IECEx 認証が EU 市場要件やすべての国の承認制度を自動的に満たすわけではありません。ATEX 製品では、適用される EU 宣言、機器グループとカテゴリ、ガスまたは粉じんの指定、納入される組立品の適合文書を確認してください。

現場要件から機器を確認する

現場の要件がゾーン 1、ガスサブグループ IIB、温度等級 T4、周囲温度 -20°C から +55°C での運用だとします。Ex db IIC T6 Gb の表示はガスグループ、温度等級、一般的な EPL 要件を満たす可能性がありますが、それだけでは認証周囲温度範囲が現場をカバーするかは分かりません。

  1. ガスまたは粉じんの分類、物質グループ、必要な温度限界、指定 EPL を確認します。

  2. 完全な機器表示、受け入れられる適合性確認経路、正確な認証型式または仕様違いを確認します。

  3. 計画する設置に対して、周囲条件の限界、電源、ケーブル引込部、アクセサリー、すべての X 条件を照合します。

  4. 受入れ時に実物の銘板と承認済み提出資料および認証書を比較し、欠落、破損、不一致のある識別情報を設置前に解決します。

  5. 力量のある担当者に設置および初期検査の記録を確認させ、保守用に文書を保管します。

技術者が電話銘板と現場確認チェックリストを照合するイラスト
現場確認のイメージ図

この確認は SIP、アナログ、指令機能の選定と分けて行ってください。通信機能は危険場所への適合性を証明しません。より広い仕様検討は電話選定ガイドで扱っています。

よくある質問

IIC T6 の電話はすべてのゾーン 1 の現場に適合しますか。

いいえ。示すのはガスグループと温度等級だけです。EPL、保護方式、周囲温度範囲、認証範囲、設置条件、現地での受入れ要件も一致する必要があります。

IP66 は Ex 表示の代わりになりますか。

いいえ。侵入保護と防爆保護は異なる特性です。耐候性のある電話でも、危険場所の承認がない場合があります。

IIC と IIIC の両方がある場合、どちらを使いますか。

ガス分類にはガスの行、粉じん分類には粉じんの行を使用します。IIC と IIIC は同じ尺度の段階ではありません。両方の危険が関係する場合は両方を評価してください。

調達承認には銘板の例だけで十分ですか。

いいえ。実際の型式の表示、完全な認証書、条件、説明書を入手し、納入される組立品に適用されることを確認してください。イラストでは製品認証を検証できません。

公式参考資料

IECEx の機器選定ガイダンスはグループ、温度等級、設置時の選定を扱います。IECEx 設置シンポジウム資料は EPL の関係、X 条件、コンポーネントの範囲を説明します。欧州委員会の ATEX 概要は EU の機器枠組みを説明しています。
